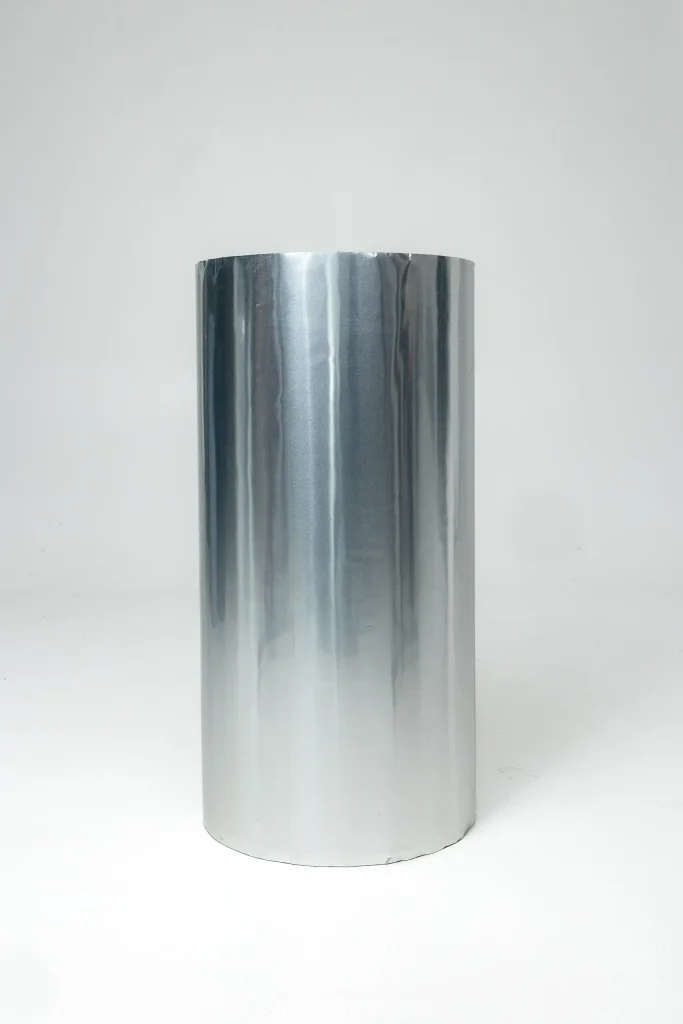

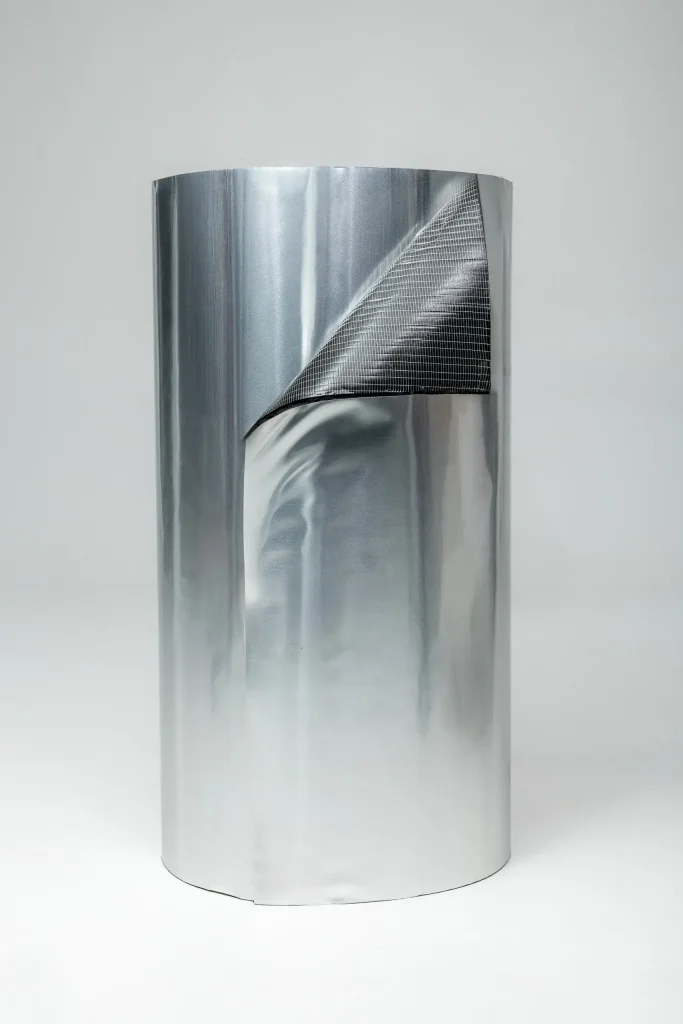

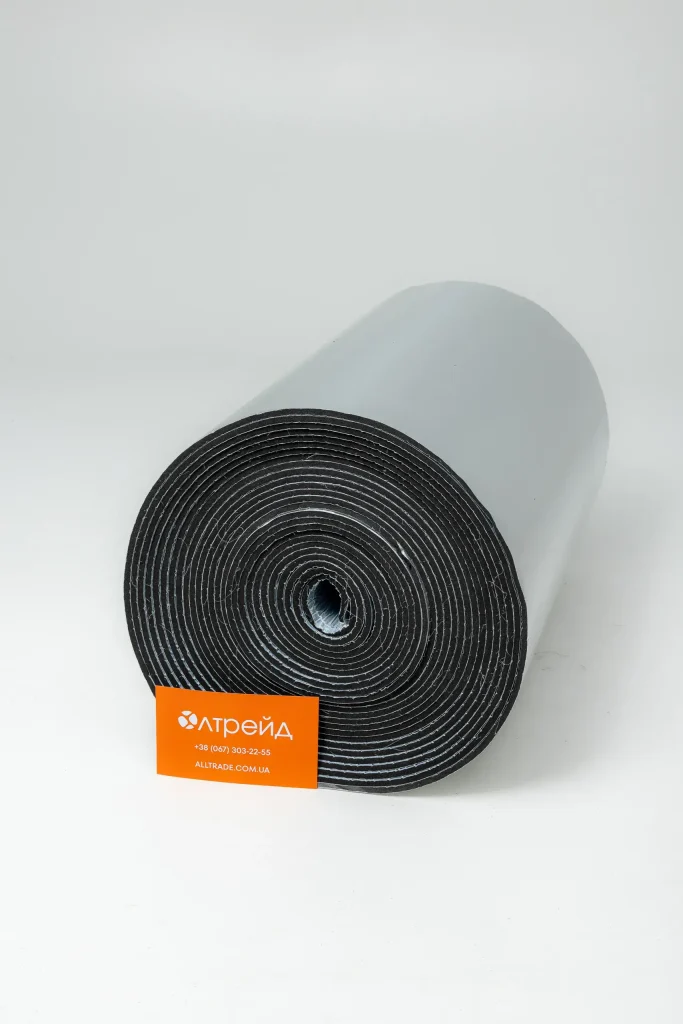

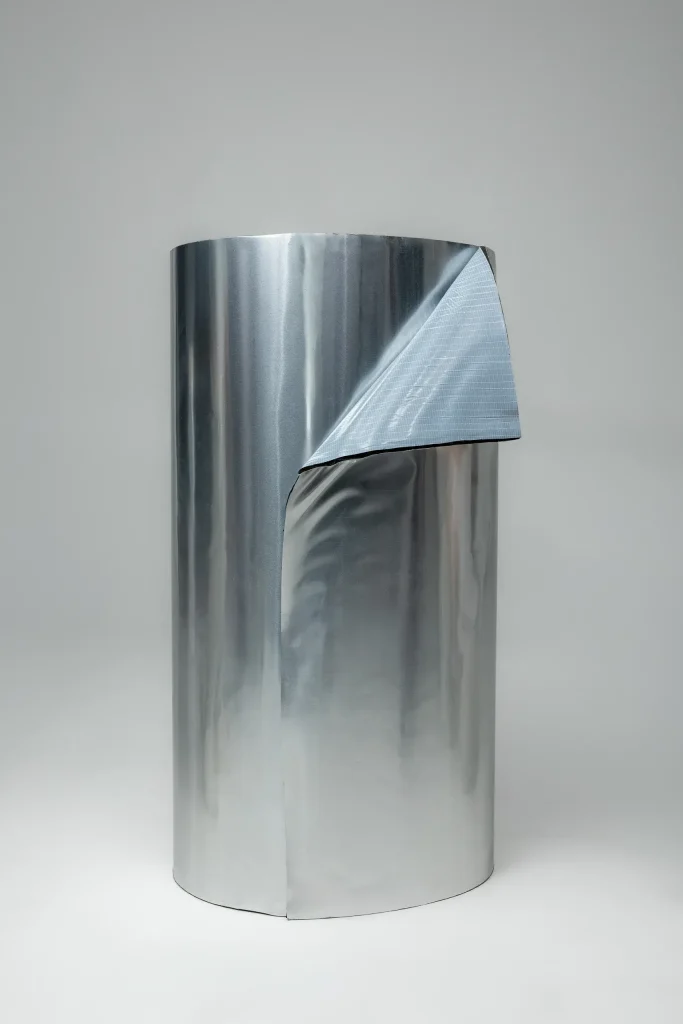

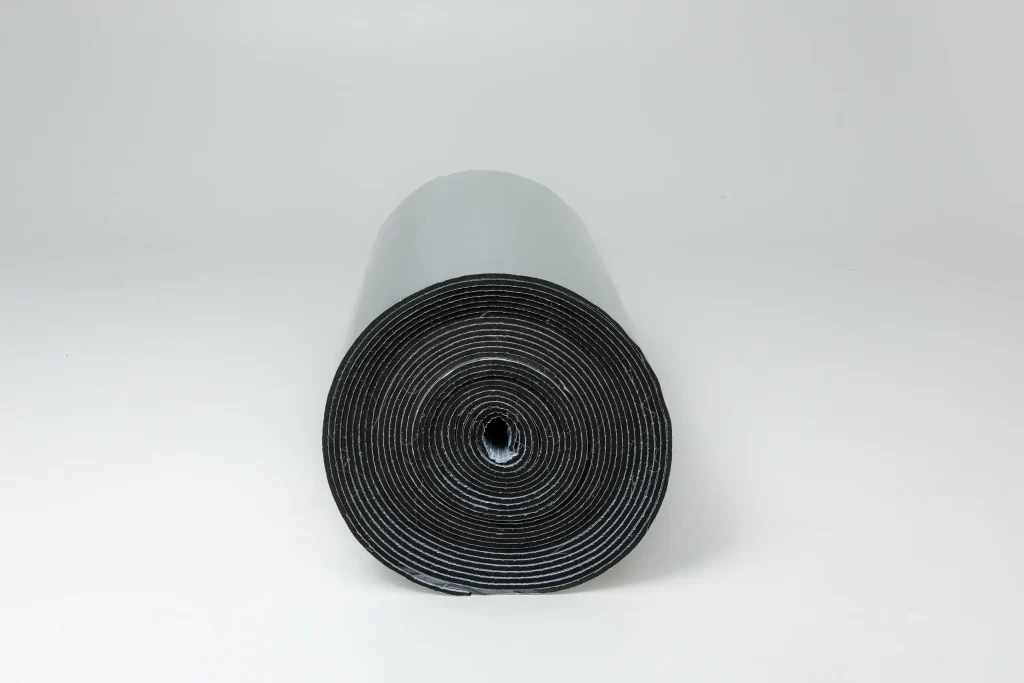

ODE R-FLEX ROLL XT AL-CLAD
The strongest protection for your insulation. ODE with ALCLAD reinforced aluminum laminate withstands impacts, UV rays, and the elements—where a standard coating would fail, ALCLAD lasts for years. This solution is designed for open-air and outdoor installation, industrial environments, and critical facilities where the cost of downtime is simply too high. The self-adhesive backing simplifies installation even in the most challenging locations. Maximum protection—no compromises. ALLTRADE is the official representative of ODE in Ukraine.
| Brand |
ODE |
| Country |
Turkey |
| Material |
Foamed synthetic rubber (FEF, NBR-based) |
| Structure |
Closed-cell |
| λ, W/(m·K) |
≤ 0.036 (at 0 °C) |
| µ |
7 500 |
| Density, kg/m³ |
45–60 |
| Working t° |
−200 °C … +115 °C |
| Flammability |
G1 — low flammability, self-extinguishing; B-s3,d0 (Class 0), EN 13501-1 |
| Water Absorption |
Minimum (closed cell) |
| Environmental Safety |
Safe; asbestos-free, CFC/HCFC-free |
| Additional Properties |
Oil and gasoline resistance: good; biostability: good; color: black; odor: neutral |
| Type |
Thermal, sound, and vapor insulation |
| Roll width |
1 m (the same for all thicknesses) |
| Thickness, mm |
3, 6, 9, 13, 16, 19, 25, 32, 40, 50 |
| Roll length |
By thickness: 3 mm — 30 m · 6 mm — 20 m · 9 mm — 14 m · 13 mm — 10 m · 16 mm — 8 m · 19 mm — 6 m · 25 mm — 4 m · 32 mm — 3 m · 40 mm — 2.5 m · 50 mm — 2 m |
Area = 1 m × length: 30 · 20 · 14 · 10 · 8 · 6 · 4 · 3 · 2.5 · 2 m² (by thickness). For the complete table, see the “Dimensions — Roll” sheet.
ALCLAD — a thick, ultra-strong aluminum laminate: maximum mechanical protection and UV resistance. Reinforced vapor barrier. Designed for open and exterior installation. Self-adhesive backing for easy installation.
Uses
-
Open and External Communications
Insulation for exposed and outdoor piping: ALCLAD laminate is impact-resistant, UV-resistant, and weather-resistant, ensuring that the insulation lasts for years.
-
Cold and protection against condensation
The closed-cell vapor barrier prevents condensation from forming on cold pipes, even under challenging conditions.
-
Industrial facilities
Insulation of equipment and utilities at industrial sites, on roofs, and on building facades, providing maximum surface protection.
-
Transportation and Equipment
Thermal and acoustic insulation for machinery and equipment subjected to high mechanical loads.
